Model GB
Backhoe Grapples

Grapple Only, Bucket is optional
Built For
Built for Loader Backhoes and Skip Loaders. Perfect for states, cities, counties or townships
Fits Your Bucket or Ours
With our extensive database of buckets profiles, we make a grapple to fit your existing bucket or pair it with one of our high strength, high capacity buckets.
Maximize Your Existing Machine
GrabTectm products maximize the capabilities of your existing machine allowing you to handle more material with each load, reducing the total number of loads, making you more efficient. Do more in less time.
Removable, Quick Attach Style Grapple
Use it when you need it, remove it when you don’t. Take it off, put it on, choose the right tool for the job.
General Specifications

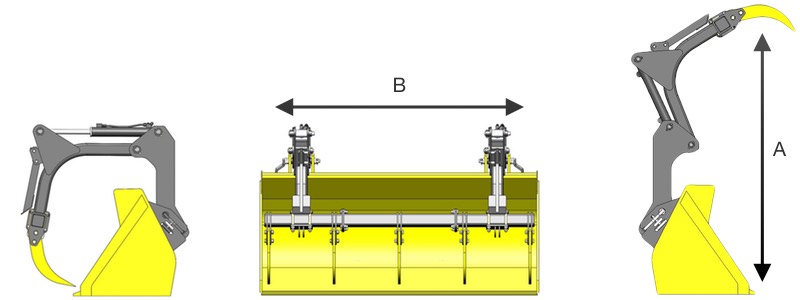

[A] Max. opening, ground to teeth (in)
82
Fits Bucket Sizes yd3
1.0 - 1.6
Number of Teeth available
4 or 5 (see models table)
Teeth Replaceable
Yes
Diameter of main grapple pivot pins (in)
1.5
Limited Warranty on Grapple material and workmanship
1 year or 2,000 hours, whichever comes first
Maximum Clamping Force at tips of teeth with 3,750psi (lbs)
6,800
Grapple opening time with 15gpm
1.6 sec. (fl ow to cylinders is not restricted. Cylinders feature internal hydraulic cushioning at end of stroke in both directions)
Maximum recommended operating pressure (psi)
4,000
Models
Model
[B] Grapple Width
# of Teeth
Weight (lbs)
GB71
71"
4
1045
GB77
77"
4
1055
GB83
83"
5
1080
GB89
89"
5
1090
